EPOGLASS G11

preview NEMA G11
CEI EN 60893 EPGC203
Mil-I-24768 3 GEB
DIN 7735 HGW 2372.4
CNR CEI UNEL Tipo EV
Product made of glass and epoxy resin, with good dielectric and mechanical properties even at high temperatures. Low dielectric losses in a moist environment.
characteristics conditioning average value
Density - 1,8 ÷ 1,9 g/cm³
Maximum operating temperature - 180°C
Electrical resistance between plugs D-24/20 5x104MOhm
Insulation resistance D-24/20 102MOhm
Electric strength perpendicular (⊥) to laminations d-03/90 40 KV/mm
Breakdown Voltage parallel (//) to laminations d-25/90 50 KV
Loss factor tan δ - 50 Hz A 0,05
Loss factor tan δ - 1000 Hz A 0,05
Loss factor tan δ - 1 MHz A 0,04
Dielectric constant (ε) A 5
Comparative Tracking Index (C.T.I.) A 180
Compressive strength perpendicular (⊥) to laminations A 3000 Kg/cm²
Compressive strength parallel (//) to laminations A 1500 Kg/cm²
Tensile strength A 2200 Kg/cm²
Flexural strength A 4000 Kg/cm²
Impact strength (Charpy) A 100 Kg*cm/cm²
Rockwell hardness (scale F) A 65
Water absorption D-24/20 0,2% (≠ 1 mm)
Thermal conductivity A 0,25 W/m*K

conditioning
A   ambient conditions
D-24/20   After 24 hours in water at 20°C
d-03/90   1 minutes at 90°C in oil ≠ 3mm
d-25/90   1 minutes at 90°C in oil ≠ 25mm
Note: The values ​​in this datasheet are approximate and refer to the samples analyzed. The user is required to verify that the product is suitable for the use for which it is intended.

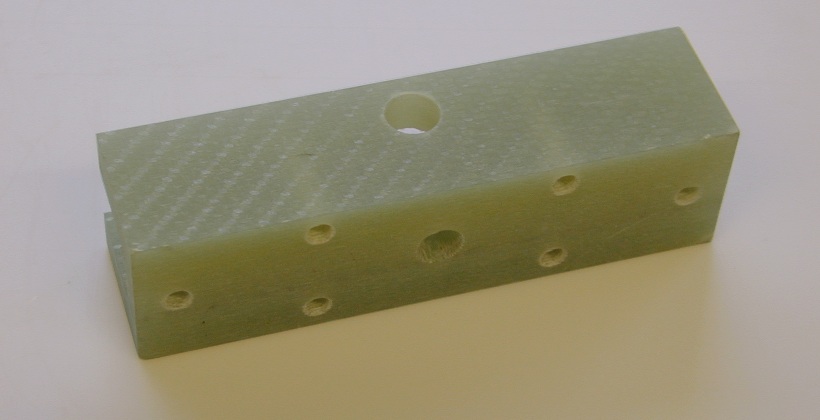

  • milled piece

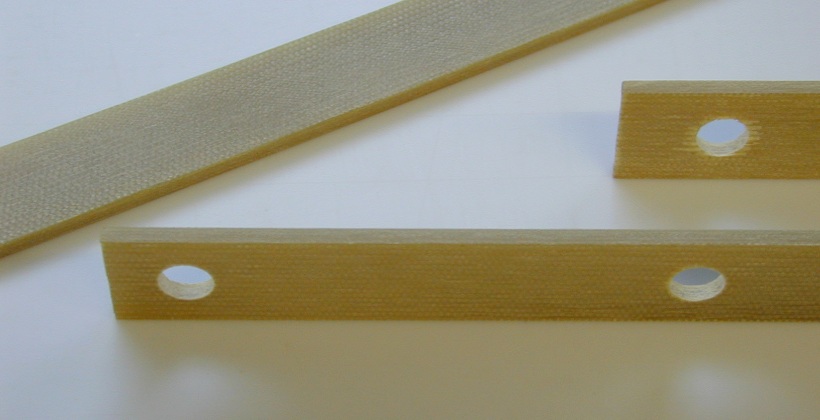

  • insulating bars

Some examples

EPOGLASS G11 is the epoxy glass suitable for use with thermal stresses above 150°C. In fact, it is resistant to temperatures up to 180°C while maintaining high performance electro-mechanical and chemical resistance typical of epoxy glass. Compared to the FR4 type requires more attention in machining.
